Bumblebee™PPB

Get the Flash Player to see this player.

This PPB’s unique construction makes it virtually indestructible. PPB unit is completely self-powered, maintenance-free, and constructed of highly durable, corrosion-proof materials that are chip and crack resistant even under heavy impact. The magnetic reed switch ensures long life and is triple-seated (no contact with pushbotton) for complete environmental protection. Physical Characteristics Overall dimensions: (length x width x depth)

Box Mount: 4.3” x 2.8” x 2.65”
Round: 3.15” DIA. x 2.65”
Pelco Style Box Mount: 4.48” x 2.8” x 2.65”
Other models also available

Plunger Specifications

Diameter: 2”
Extension beyond bezel (static state): 0.45”
Pre-Travel (from static to actuate): 0.150”
Over-Travel (from actuate to end stop): 0.10”
Switch release to static state: 0.125”

Operating Force: <3.7 lbf

Release Force: <3.7 lbf

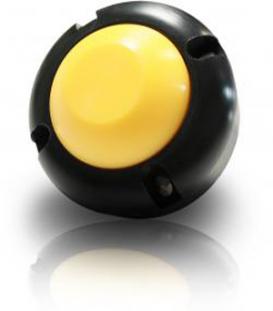

Color: Black Bezel with High Visibility Yellow Plunger

Temperature Range:(Centigrade)

Operate: -40 to +85
Storage: -40 to +85

Electrical Switch Characteristics

Contact Rating: 20 Watts (max)

Voltage: (VDC)

Switching: 200 (max)
Breakdown: 250 (min)

Current: (Amperes)

Switching: 1.0 (max)
Carry: 1.0 (max)

Resistance: (Ohms)

Contact, initial: 0.2 (typical)
Contact insulation: 10 (min)

Capacitance: (pF typical)

Contact: 0.4

Operating Life: > 10,000,000 Cycles
