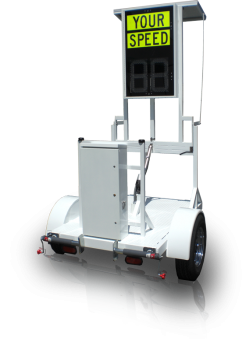

VCalm®YS-T

Fortel Traffic’s VCalm®YS-T is a powerful traffic calming sign that is upgradable to a Variable Message Sign (VMS). With the added versatility of a trailer, theVCalm®YS-T provides a perfectly simple way for a single operator to relocate the sign. It is a low-cost and upgradeable VCalm® unit that includes all the features of a VCalm®VMS-T sign without the VMS upper display.

Brightest Display:
VCalm® utilizes high-volume high-intensity tightly clustered LEDs to maintain the highest visibility possible. This proven method of authoritative message presentation demands driver’s attention, making it the most efficient traffic calming sign on the market.

Lowest Power Consumption:
VCalm® uses proprietary PWMS™ LED technology that consumes 50% less power than common LED technology. Solar power with back-up batteries is included to deliver excpetional autonomy.

Strongest Construction:
VCalm® maintains superior construction and durability with high quality components and no moving parts. The design meets the NEMA-3R specifications, and many of the VCalm® signs have withstood severe conditions, including hurricanes, fires, and extreme temperatures. VCalm® has consistently proved to be the longest lasting speed sign in the industry.

Unrivaled Versatility:
Multiple independently-scheduled vehicle speed thresholds can trigger any variation of messages and/or auxiliary devices. Easily upgradeable to the VCalm®VMS-T so full custom messaging and critical messaging features can be utilized

Simplest Programming:
SD Card provides practically limitless data storage space (40 years of data per gigabyte) and makes programming and data retrieval simple and affordable. (SDHC compatible) Modems provide remote access to sign programming so changes can be made instantly online VSpeed™Online is the ultimate management software that gives the ability to program signs, simulate functionality, analyze data, and deploy configuration changes through remote access or SD cards.

Easy and Accurate Reports:
Traffic Data Acquisition System (TDAS) counts vehicles and collects the fastest and slowest speed for each vehicle. Accurate raw data collected by a sign can be used to construct limitless report formats and parameters for thorough data analysis.accurate data analysis

Solar Specifications:

Batteries: (2) 79AH Batteries

Solar Panel: 85 Watt

Degradation: 10% (10 years) 20% (20 years)
Maximum Voltage: 17.5V
Maximum Current: 4.9A

Solar Controller:

Digital LCD Display
Low power consumption (24mA)

Dimensions:

Raised: 10’(h) x 5’7”(w) x 7’7”(d)
Lowered: 5’(h) x 5’7”(w) x 7’7”(d)
Display Numerals: 16”(h) x 9”(w) Amber LEDs

Weight: 800lbs.

Construction:

Frame: 3” x 4” x 0.125” Powder coated
Continuous welded steel
Wheels: 14” with spokes.
Lens: 3/8” polycarbonate
Stability: 4 retractable jack stands
Tail lights: 6-way standard male plug

Optional:

Wireless IP Modem
Wireless WIFI
Wireless Alert System
GPS Clock
Automatic Diming
Strobe, Flashers, and Sirens

VCalm®YS-T Brochure

Please click the link below to download our VCalm®YS-T brochure.

VCalm®YS-T Brochure
